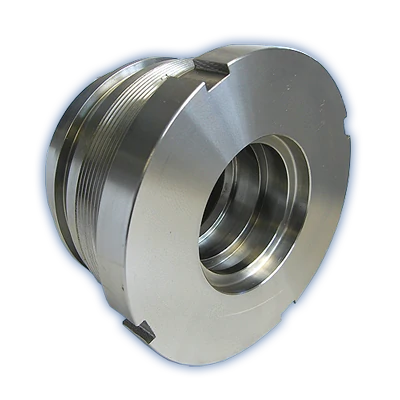

50-300mm Bore heavy duty steel head bush gland
RAMPARTS HEAVY DUTY DOUBLE / SINGLE ACTING HEAD BUSH GLANDS, AVAILABLE FROM 50mm DIA BORE TO 300mm DIA BORE. HEAVY DUTY HEAD BUSH’S ARE USED IN A VARIETY OF HEAVY DUTY APPLICATIONS SUCH AS PLANT EQUIPMENT AND ECAVATORS ETC.
ALL HEAVY DUTY HEADBUSH GLANDS ARE NOT SUITABLE FOR USE WITH STANDARD RAMPARTS TUBES.
MAXIMUM WORKING PRESSURE = 350 BAR
MATERIAL = STEEL UNI-C40
SOLID STOP RINGS FOR DISPLACEMENT PISTONS, AVAILABLE FROM 34mm DIA TO 68mm DIA. SOLID STOP RINGS ARE NOT SUITABLE FOR STANDARD RAMPARTS CHROMED RODS. MAXIMUM PEAK PRESSURE = 250 BAR MATERIAL = STEEL – FE510C
RAMPARTS PISTONS FOR MTS TEMPOSONICS MS LINEAR POSITIONING SENSOR, AVAILABLE TO SUIT 40mm DIA BORE AND 50mm DIA BORE CYLINDER TUBES. FOR PISTON SIZES 60mm BORE TO 100mm BORE TO SUIT MH TYPE MTS TEMPOSONICS LINEAR POSITIONING SENSOR PLEASE SEE CTF STYLE THREADED PISTONS UNDER RPTP THREADED AND SHORT THREADED PISTONS, SEE DATA SHEET BELOW
RAMPARTS DOUBLE / SINGLE ACTING HEAVY DUTY THREADED PISTONS WITH GRUB SCREW, AVAILABLE FROM 50mm DIA BORE TO 300mm DIA BORE. DNV PISTONS ARE ARE DESIGNED IN ACCORDANCE WITH DNV PART 4, CHAPTER 7 RULES SHIPS, LIGHT CRAFT AND NAVAL SURFACE CRAFT. HEAVY DUTY THREADED PISTONS WITH GRUB SCREW ARE NOT SUITABLE FOR STANDARD RAMPARTS
