NFPA / ISO Compatible
Standard Hydraulic Cylinder
Toleng standard hydraulic cylinders deliver consistent, dependable power for everyday industrial applications. Available in a wide range of bore sizes, mounting styles, and pressure ratings — NFPA and ISO compatible for seamless OEM integration and replacements.
Standard Hydraulic Cylinders Manufacturer in china
Versatile Hydraulic Cylinders for Everyday Industry

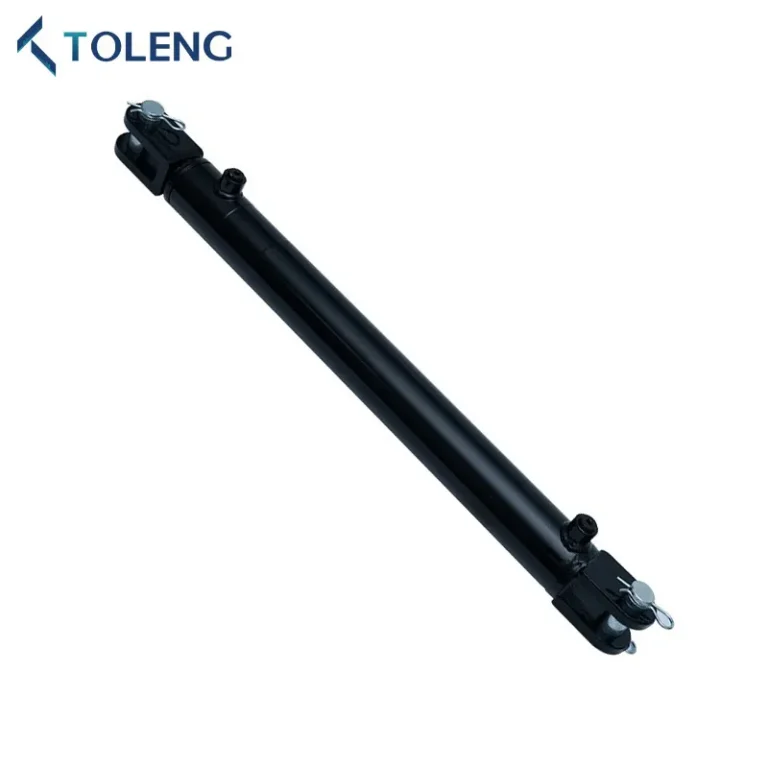

Toleng standard hydraulic cylinders are precision-engineered linear actuators designed to deliver reliable and efficient power transmission for a wide range of industrial applications. With robust construction, precision-honed steel tubes, and durable chrome-plated piston rods, these cylinders handle medium-duty cycles and challenging work environments with ease.
Available in various bore sizes, mounting styles, and pressure ratings, our standard cylinders meet diverse equipment requirements across construction, manufacturing, material handling, and automation industries.
Designed for straightforward integration, Toleng standard cylinders offer versatile mounting options, standard port configurations, and precision-engineered components for smooth, efficient motion.
Explore Features →
Key Features
Engineered for durability, reliability, and long service life
Precision-Honed Steel Tubes
High-grade alloy steel tubes with precision-honed internal surfaces ensure smooth piston movement, reduced friction, and extended seal life.
Hard Chrome-Plated Rods
Durable chrome-plated piston rods provide superior resistance to wear, corrosion, and scoring, delivering a service life that exceeds industry standards.
Leak-Free Sealing System
Proprietary multi-lip seal design maintains consistent pressure, prevents internal/external leakage, and minimizes fluid consumption.
NFPA / ISO Compatible
Standard mounting dimensions and port configurations ensure seamless integration with existing equipment and easy replacements.
Versatile Mounting Options
Available in multiple mounting styles including clevis, flange, trunnion, and cross tube — matching your equipment's requirements.
Extended Service Life
Advanced surface treatments including nitriding and chrome plating deliver an average service life of 8+ years, compared to the industry average of 5+ years.
Technical Specifications
Standard configurations for Toleng hydraulic cylinders
| Parameter | Specification / Range | Notes |
|---|---|---|
| Type | Double Acting / Single Acting | Customizable |
| Bore Diameter | 1.5" – 8" (38mm – 200mm) | NFPA standard sizes |
| Rod Diameter | 0.75" – 4.5" (19mm – 114mm) | Hard chrome plated |
| Stroke Length | 2" – 120" (50mm – 3000mm) | Custom strokes available |
| Working Pressure | 2500 – 3000 PSI (17 – 21 MPa) | Higher on request |
| Port Options | NPT, SAE O-Ring, BSP | Standard configurations |
| Mounting Types | Clevis, Flange, Trunnion, Cross Tube, Side Lug, Foot | NFPA standard |
| Seal Temperature Range | -30°C to +100°C (-22°F to +212°F) | Low-temp options available |

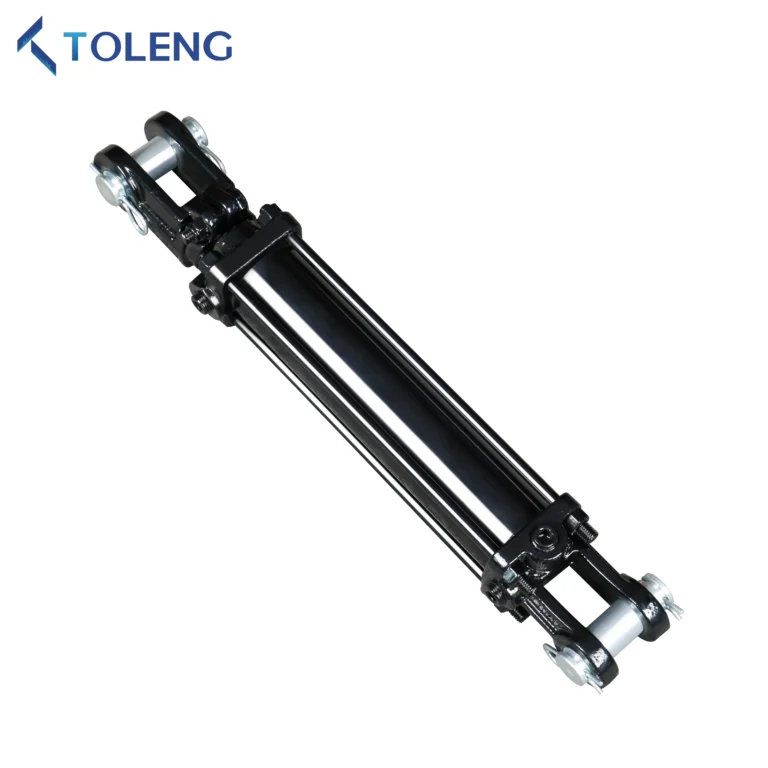

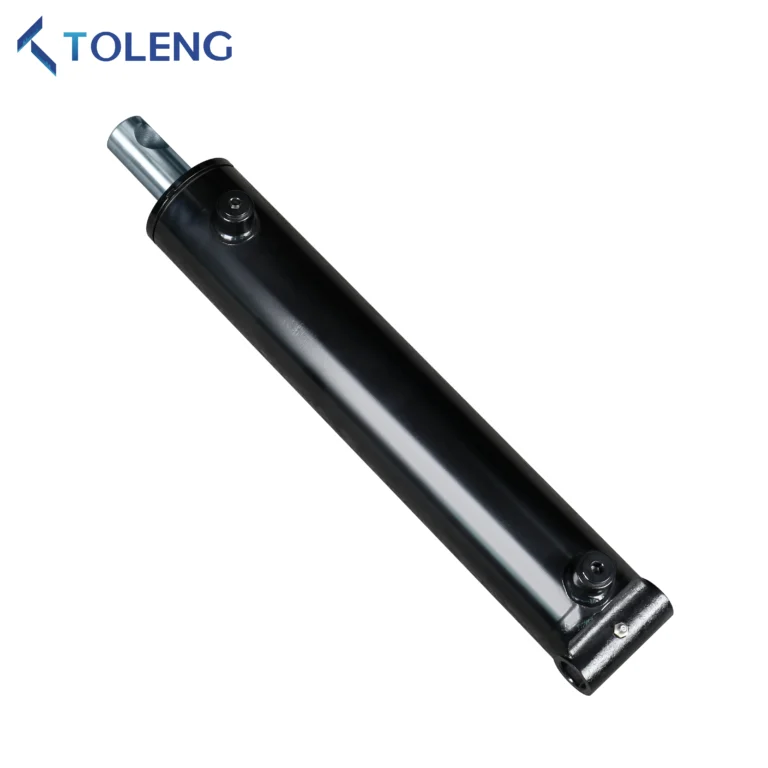

| Construction | Welded Steel / Tie Rod | Both options available |
| Certifications | ISO 9001 | 100% pressure tested |
Need a specific configuration? Contact our engineering team for a custom solution. Request a quote →
Applications
Where Toleng standard hydraulic cylinders deliver reliable performance
Material Handling
Forklifts, pallet trucks, scissor lifts, and conveyors

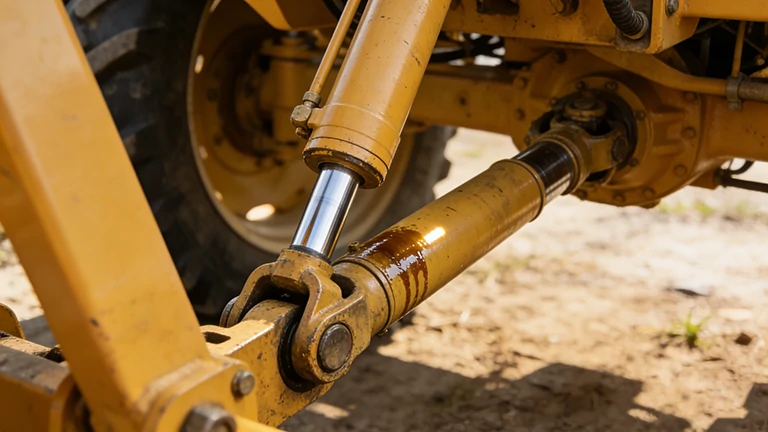

Light Construction
Compact loaders, small excavators, and aerial work platforms
Agricultural Machinery
Balers, conveyors, feed mixers, and harvesters
Industrial Automation
Packaging lines, assembly stations, and light industrial presses
Standards Compliance
Built to industry standards for interchangeability and reliability
NFPA
Mounting dimensions standard
ISO
International standard compliance
ISO 9001
Quality management certified
OEM Compatible
Direct replacements for major brands
Frequently Asked Questions
Quick answers about Toleng standard hydraulic cylinders
What is a standard hydraulic cylinder?
A standard hydraulic cylinder is a versatile linear actuator designed for general industrial applications, available in standardized bore sizes, mounting styles, and pressure ratings for easy integration and replacement.
What pressure ratings are available?
Toleng standard cylinders are available in 2500 PSI and 3000 PSI configurations, with higher pressure options available upon request.
What bore sizes do you offer?
Standard bore sizes range from 1.5" to 8" (38mm to 200mm), following NFPA standard dimensions for interchangeability.
Are Toleng standard cylinders NFPA compatible?
Yes, our standard cylinders follow NFPA mounting dimensions and port configurations, ensuring seamless integration with existing equipment.
What mounting options are available?
Clevis, flange, trunnion, cross tube, side lug, and foot mounts — all NFPA standard configurations.
Can I get custom stroke lengths?
Yes, custom strokes from 2" to 120" are available. Our engineering team can accommodate your specific requirements.
What is the typical service life?
Toleng standard cylinders deliver an average service life of 8+ years, exceeding the industry average of 5+ years.
What is the MOQ for standard cylinders?
No MOQ for standard models. Custom orders are welcome with sample quantities available.
Need an Standard Hydraulic Cylinder?
Send us your bore size, stroke length, and mounting requirements. Our engineers will respond within 24 hours.
