Telescopic Hydraulic Cylinder
Engineered for demanding extensions, our customizable telescopic hydraulic cylinders deliver multi-stage power and leak-free reliability in the harshest environments.
Telescopic Hydraulic Cylinder Manufacturer in china
Choose the right custom telescopic hydraulic cylinder type to meet your specific application
Toleng Telescopic Hydraulic Cylinders: Engineered for Multi-Stage Power in Demanding Applications
At Toleng, our telescopic hydraulic cylinders are engineered to deliver multi-stage power and unwavering reliability in the most demanding heavy-duty applications. We manufacture these cylinders from high-strength materials such as precision-honed cold-drawn tubes and induction-hardened, chrome-plated piston rods, building them to withstand extreme shock loads, high cycle frequencies, and the harshest operating environments.
We design our telescopic cylinders around proven engineering elements to sustain demanding service life:
Robust multi-stage telescopic construction eliminates single-stage limitations while providing superior extension force and compact retracted lengths.
Advanced sealing technology ensures leak-free performance even under continuous high-pressure operation across multiple stages.
Custom integration-ready options, including clevis, cross-tube, trunnion, and flange mounts, optimized port configurations, and precision machined components for ultra-smooth telescopic action across industries—covering construction machinery, agricultural equipment, sanitation vehicles, and material handling systems.
For applications that demand extra durability and system-level control, we offer optional features to meet rigorous international standards while keeping operation reliable and maintenance-friendly:
Integrated position sensors for closed-loop control and machine responsiveness across full extension ranges.
Advanced corrosion-resistant coatings rated for 240+ hour salt spray testing for harsh environments.
Custom stroke lengths and stage configurations tailored to your most challenging machinery applications.
Versatile Applications of Toleng Telescopic Hydraulic Cylinders
High-Quality Telescopic Hydraulic Cylinder Manufacturer in China – TOLENG
TOLENG is a leading manufacturer and supplier of telescopic hydraulic cylinders in China. Pinghu Tianlong Machinery Manufacturing Co., Ltd., founded in 1998, has extensive experience in producing high-quality hydraulic cylinders for various industries, including agriculture, construction, sanitation, and more. We also provide customizable telescopic hydraulic cylinders to meet specific customer requirements.
What Is a Telescopic Hydraulic Cylinder?
A telescopic hydraulic cylinder (also known as a multi-stage cylinder or telescopic ram) is a special type of hydraulic cylinder designed to provide an exceptionally long working stroke from a compact retracted length. It consists of multiple nested tubular stages called “sleeves” that extend sequentially. This unique design makes it the ideal solution when installation space is limited but maximum reach is required.
Key Applications
Our telescopic hydraulic cylinders are engineered to perform reliably in the most demanding environments. Common applications include:

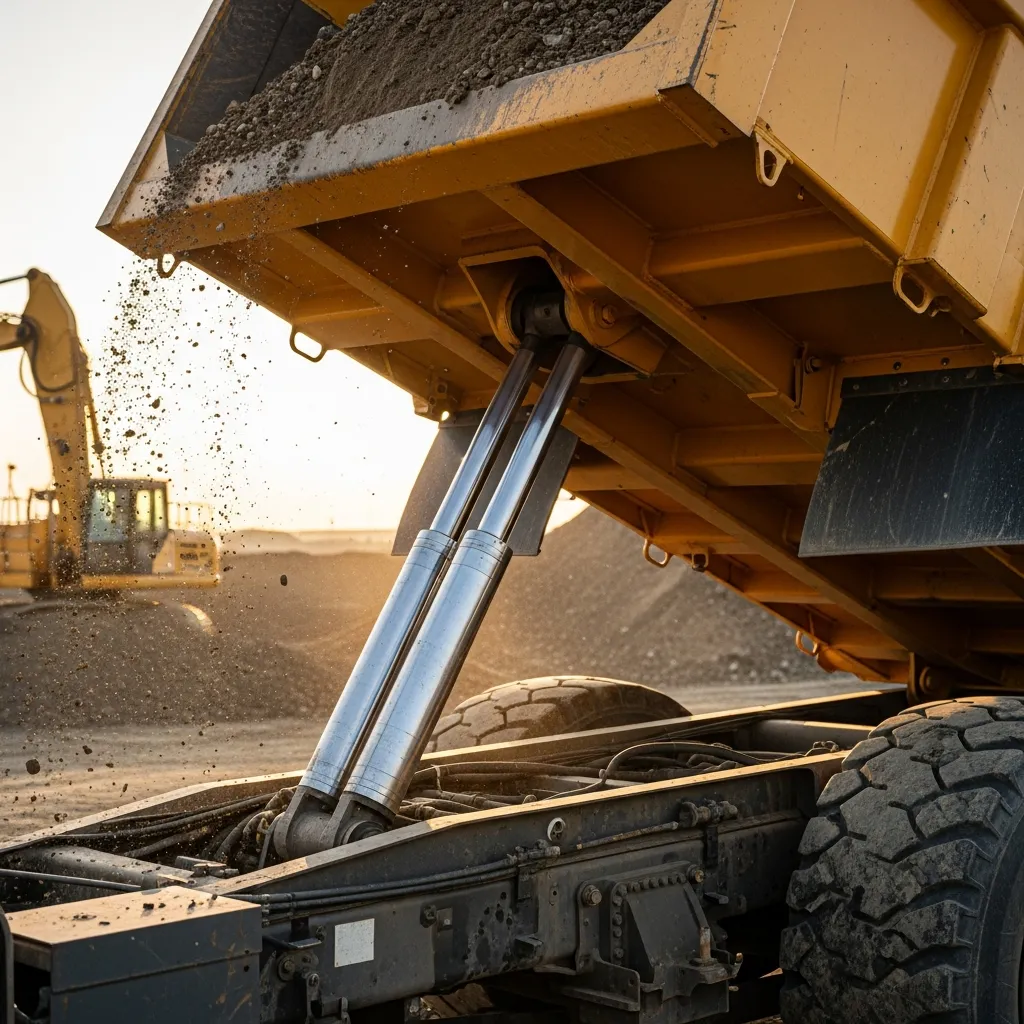

- Dump Trucks / Tipper Trucks: Lifting heavy loads with stability and control
- Mobile Cranes: Providing extended reach for lifting operations
- Garbage Trucks / Waste Management Vehicles: Compacting waste and lifting containers
- Agricultural Machinery: Heavy-duty lifting in confined spaces
- Construction Equipment: Long-stroke applications where space is restricted
- Sanitation Vehicles: Compact installation with extended lifting capability
Why Choose TOLENG Telescopic Cylinders?
- Premium Materials for Durability
We manufacture our telescopic hydraulic cylinders using high-strength steel and premium materials. This ensures long-lasting performance and reliability even under continuous high-pressure operation and harsh environmental conditions.
- Space-Saving Design
The telescopic design provides extended reach while maintaining a compact retracted length. This lightweight, space-efficient construction allows for easy installation in tight spaces without compromising power or performance.
- Fully Customizable Solutions
Every project has unique requirements. We offer custom telescopic hydraulic cylinders tailored to your exact specifications, including:
- Stroke length
- Mounting style (trunnion, clevis, cross-tube, flange)
- Pressure requirements
- Port sizes and locations
- Single-acting or double-acting configurations
- Certifications & Quality Assurance
Our manufacturing facility is certified with:
- ISO 9001 (Quality Management System)
- ISO 14001 (Environmental Management System)
We also hold multiple patents that enhance our design and manufacturing capabilities. Every single hydraulic cylinder is rigorously inspected before shipment to ensure zero defects and optimal performance.
- Long Service Life
Combining quality materials, advanced engineering, and strict quality control, our telescopic hydraulic cylinders deliver exceptional service life, reducing downtime and maintenance costs for our customers.
Technical Specifications & Engineering Capabilities
We offer a wide range of standard and custom configurations to meet your exact needs. Below are our typical engineering capabilities:
Parameter | Typical Range / Capability |
Number of Stages | 2-stage, 3-stage, 4-stage, and multi-stage configurations available |
Bore Size (Diameter) | Customizable, typically ranging from 2″ to 10″ (50mm to 250mm) |
Stroke Length | Up to 8 meters (custom stroke lengths available upon request) |
Operating Pressure | Up to 2500 PSI (170 bar) for standard models; high-pressure options available |
Action Type | Single-acting (gravity return) or double-acting (hydraulic return) |
Material | High-strength cold-drawn tubes; induction-hardened, hard chrome-plated piston rods |
Mounting Styles | Trunnion, clevis, cross-tube, flange, and custom designs |
Surface Treatment | Hard chrome plating, zinc plating, or custom coatings for corrosion resistance |
Sealing System | Advanced high-pressure seals for leak-proof performance |
Note: All specifications can be tailored during the custom manufacturing process. Contact our engineering team for a design review.
Global Export & Market Presence
We are not just a local supplier; we are a leading hydraulic cylinder manufacturer in China with a strong global footprint. Our telescopic hydraulic cylinders are trusted by equipment manufacturers and maintenance teams in:
- United States
- Australia
- South Africa
- European countries
- Southeast Asia
- Middle East
- South America
Our products have gained international recognition for their reliability, durability, and performance.
Frequently Asked Questions About Telescopic Hydraulic Cylinders
Where are telescopic hydraulic cylinders best used?
Telescopic hydraulic cylinders are ideal for applications requiring a very long stroke but with limited mounting space. They are commonly used in dump trucks, trailers, cranes, waste management vehicles, and agricultural equipment where compact retracted length and extended reach are both essential.
What is the difference between single-acting and double-acting telescopic cylinders?
Single-acting telescopic cylinders use hydraulic pressure for extension and rely on gravity or the weight of the load for retraction. They are simpler in design and commonly used in dump trucks and tipping applications.
Double-acting telescopic cylinders use hydraulic pressure for both extension and retraction, offering more precise control. They are preferred for applications where gravity retraction is not possible or where controlled movement in both directions is required.
Can you customize the mounting style and port configuration?
Absolutely. As a specialized custom hydraulic cylinder manufacturer, we support various mounting styles including trunnion, clevis, cross-tube, and flange mounts. We can also customize port sizes, locations, and thread types to match your specific equipment requirements.
How do you ensure cylinder reliability under high pressure?
We ensure reliability through:
- Robust construction using high-strength materials
- Advanced sealing systems designed for high-pressure applications
- Induction-hardened, hard chrome-plated piston rods for wear resistance
- 100% inspection of every cylinder before shipment
- Batch-by-batch testing to verify performance under rated pressure
- Strict quality control throughout the manufacturing process
What is the typical lead time for custom telescopic cylinders?
Lead time varies depending on the complexity and quantity of the order. Standard custom cylinders typically require 3-6 weeks for production. Please contact us with your specific requirements for a detailed timeline.
Do you provide engineering support for new projects?
Yes. Our experienced engineering team is available to review your drawings, discuss your requirements, and provide technical recommendations. We can help optimize your cylinder design for maximum performance and longevity.
Why Work With a Chinese Hydraulic Cylinder Manufacturer?
Partnering with TOLENG as your hydraulic cylinder manufacturer in China offers several advantages:
- Competitive pricing without compromising quality
- Extensive manufacturing experience since 1998
- Flexible customization to meet unique requirements
- Strict quality control with international certifications
- Reliable export experience to markets worldwide
- Responsive communication and technical support
Request a Quote or Engineering Support
Looking for a reliable telescopic cylinder for your dump truck, crane, or specialized equipment? Send us your drawings or technical requirements. Our team will provide a detailed quote and engineering recommendations within 24-48 hours.
Contact Information:
- Tel: +86-139 5731 3900
- Email: iinfo@tolenghydraulics.com
- Website: www. tolenghydraulics.com
- Factory Address: No.368 Tiancheng Road, Lindai District ,Pinghu City ,Zhejiang Province, China
About TOLENG
Pinghu Toleng Machinery Manufacturing Co., Ltd. (TOLENG) has been dedicated to the research, development, and manufacturing of hydraulic cylinders since 1998. With over two decades of industry experience, we have built a reputation for quality, reliability, and innovation.
Our commitment to continuous improvement, customer satisfaction, and engineering excellence has made us a preferred partner for hydraulic cylinder solutions across multiple industries worldwide.
Choose TOLENG for durable, high-performance telescopic hydraulic cylinders that deliver when you need them most.
ISO 9001 • ISO 14001 • Multiple Patents • Since 1998
